FAST ECO DRYING SOLUTION (F.E.D. Solution)

By FFSolution, Most Advanced DPF Cleaning Machine


Traditional Drying Solution

In Traditional Drying Solution we forced drying with blower only, in this solution normally 3 to 7 kw blowers are used. This solution take too much time for drying the filter.

HOW MUCH TIME TAKE FOR DRYING THE FILTER


With Traditional Drying Solution

  • Drying times for car filters about 30-45 minutes.
  • Drying times for modular truck filters about 180-240 minutes.
  • Drying times large catalysts SCR 240-300-360 minutes.

Forced Drying With Addition Of Heating Resistance

In this solution we forced drying with blower and addition of heating resistance , in this solution normally 3 to 7 kw blowers are used and addition 3 to 7 kw resistance we used for heating.


HOW MUCH TIME TAKE FOR DRYING THE FILTER


With Forced Drying With Addition Of Heating Resistance

  • Drying times for car filters about 30-45 minutes.
  • Drying times for modular truck filters about 180-240 minutes.
  • Drying times large catalysts SCR 240-300-360 minutes.

drying in an unventilated refractory oven 6 kw at least

In this solution unventilated refractory temperature about 300 - 400 degrees. Drying times for filters about 60-90 minutes. Cooling time depend on temperature, at least 4-5 hours. Cabin size of refractory the same as the FH1 machine.

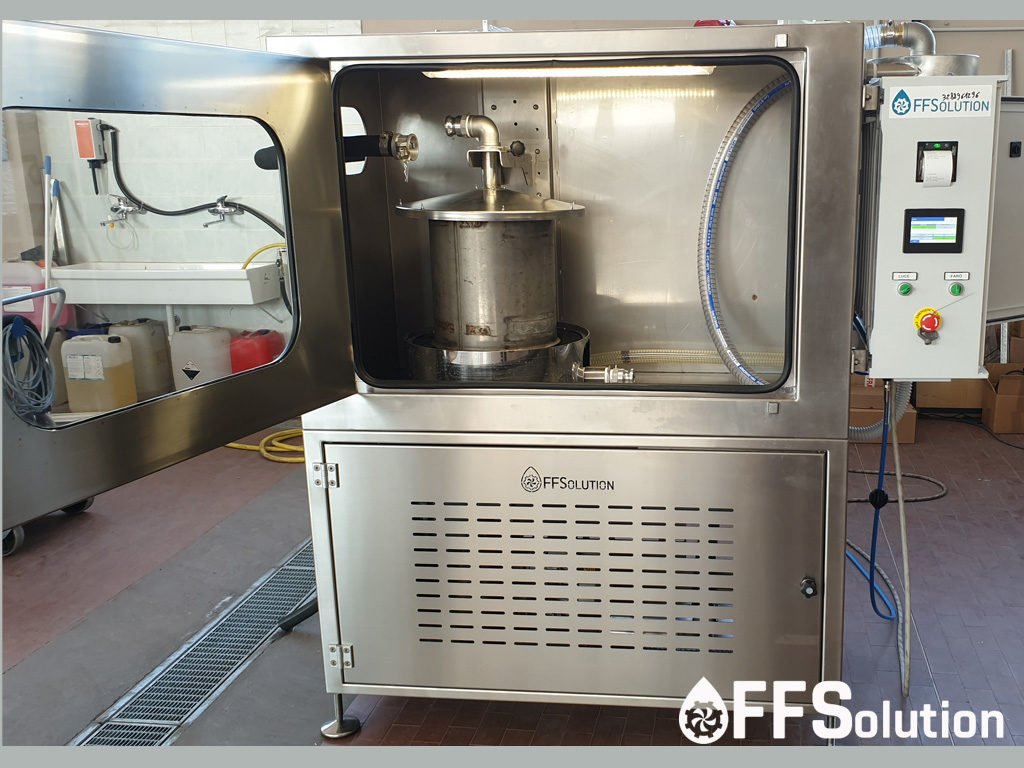

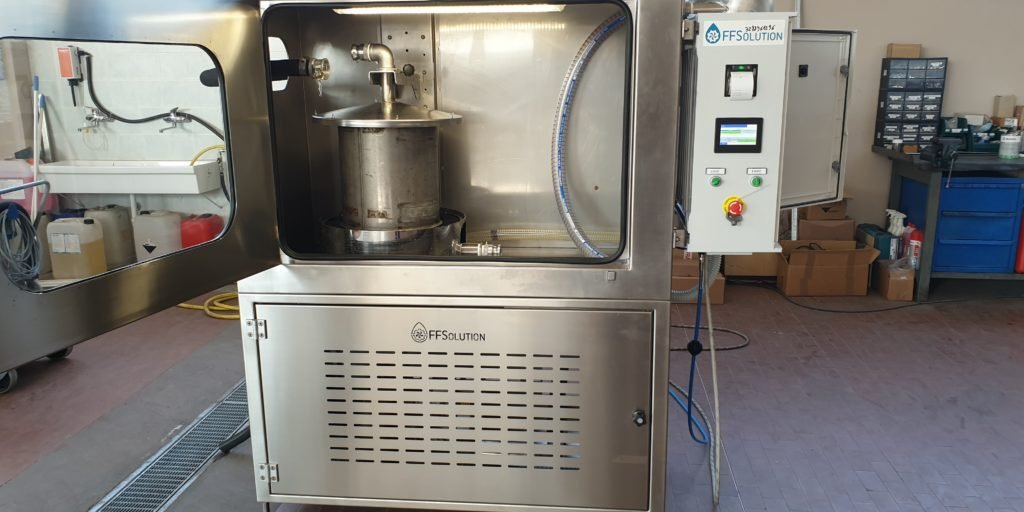

What is Fast Eco Drying Solution?


After washing DPF, the water left in the filter. Drying this water with traditional drying solution take time about 30-45 minutes for car filter. Empty the DPF of the remaining water with our Fast Eco Drying Solution it take 1-2 minutes maximum.

F.E.D. solution with this system after washing, the water left in the filter is sucked with the inlet of the blower creating a depression. The sucked water is again introduced into the tank and reused, in this way we always recover all the water and if we calculate the washings carried out during the year the savings are enormous. After this phase, only moisture remains inside the filter.



HOW MUCH TIME TAKE FOR DRYING THE FILTER


With F.E.D SOLUTION

  • Time to empty the water from the DPF 1-2 minutes.
  • CAR - LDV DPF drying time 5-7 minutes.
  • Trucks/Bus Modular DPF around 20 Minutes.
  • SCR drying time 35-40 Minutes.
